Top Hat profiles are fully supported sections designed to support and join wall cladding systems built with ThermaBarr, ThermaGard and ThermaMagma WAL insulated panels.

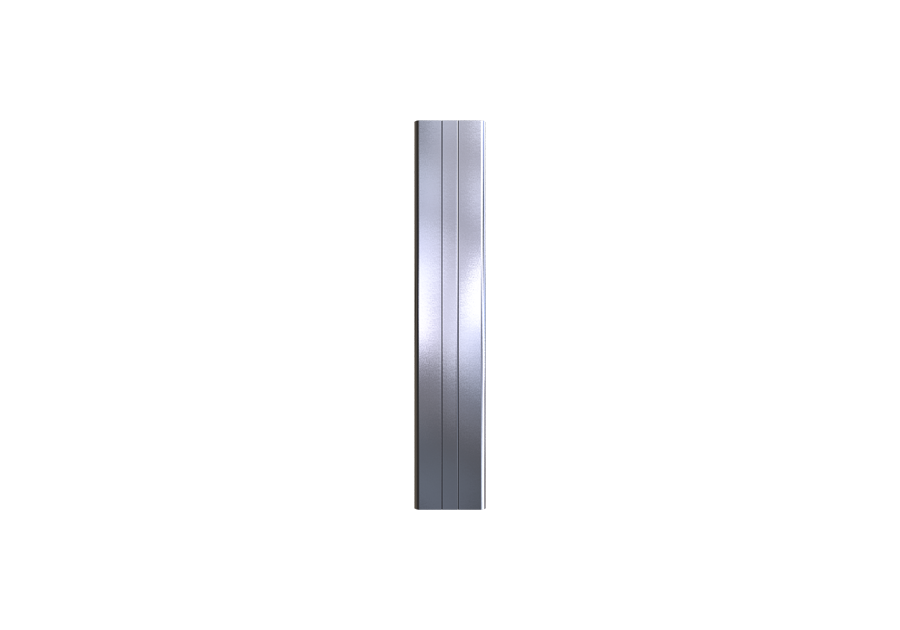

Top Hat
Key benefits
- enhanced mechanical strength
- high corrosion resistance
- architectural aesthetics
- uniform coverage of fixing points
- compatibility with EPDM sealants
- option for polyester powder coating
Manufactured with
- coverage width 72 mm
- maximum depth 21.5 mm
- length 6,000 mm
Description
Aluminium and aluminium alloys (EN 755:2016)
Forming
Suitable for external and internal coverage of vertical and horizontal panel joints
Available Options
Available coatings and colours
DETAILS
CLOSE
Polyester Powder Coating
Nominal coating thickness: 60–80 μm
Surface texture: smooth
A high-durability coating applied electrostatically and cured at high temperature, ensuring excellent adhesion and an even surface finish.
Suitable for external applications where increased resistance to UV exposure, corrosion and climatic variation is required. Widely used in demanding architectural projects and industrial facilities, offering long-term colour retention and stable quality.
Coating colour options
A wide range of colours is available:
RAL 1013
RAL 1014
RAL 1015
RAL 1023
RAL 2008
RAL 2013
DB 302
RAL 3005
RAL 3009
RAL 3011
RAL 3020
RAL 5005
RAL 5010
RAL 5014
RAL 5015
RAL 5024
RAL 6005
RAL 6011
RAL 6017
RAL 6021
RAL 7004
RAL 7015
RAL 7016
RAL 7023
RAL 7030
RAL 7035
RAL 7036
RAL 7037
RAL 7040
RAL 7042
RAL 7044
RAL 7045
RAL 8004
RAL 8014
RAL 8017
RAL 8019
RAL 9002
RAL 9005
RAL 9006
RAL 9007
RAL 9010
For more colours, contact us.
Connection / fixing options
DETAILS
CLOSE
Self-drilling fixing
Installed at the joint between panels, at a distance from the supporting frame, after the panel installation is completed. In practice, self-drilling screws of suitable length may be used.
Sealants and gaskets
The use of sealants and gaskets is optional and depends on project requirements. Butyl- or silicone-based sealants are recommended for optimum watertight performance.
EPDM rubber gasket grooves
Designed with dedicated grooves that allow easy installation of EPDM sealing gaskets.
