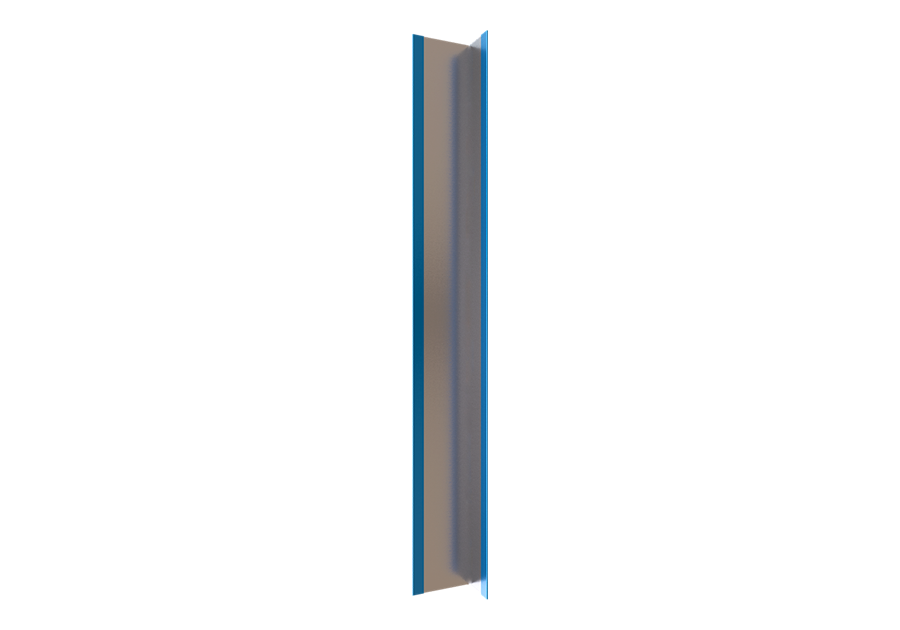

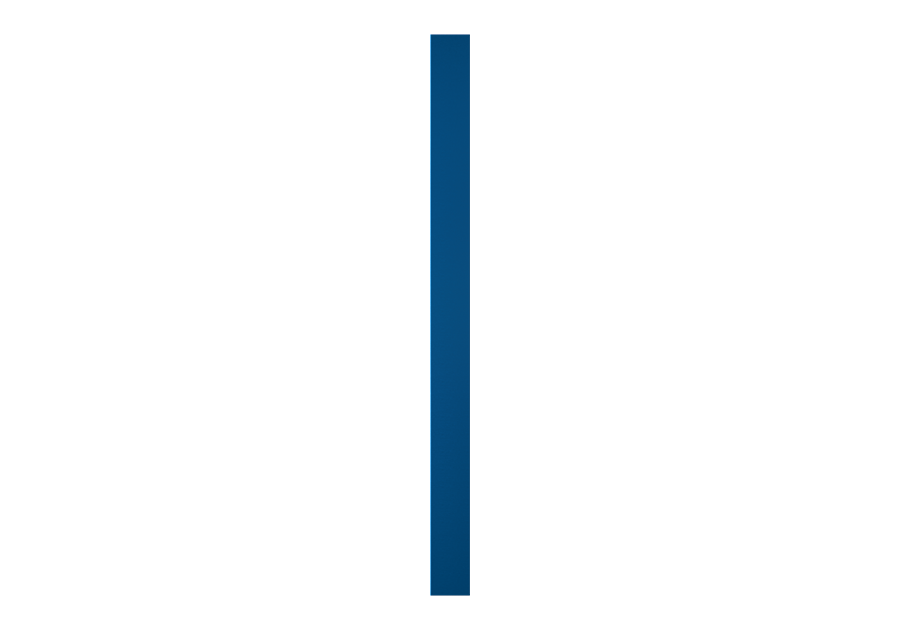

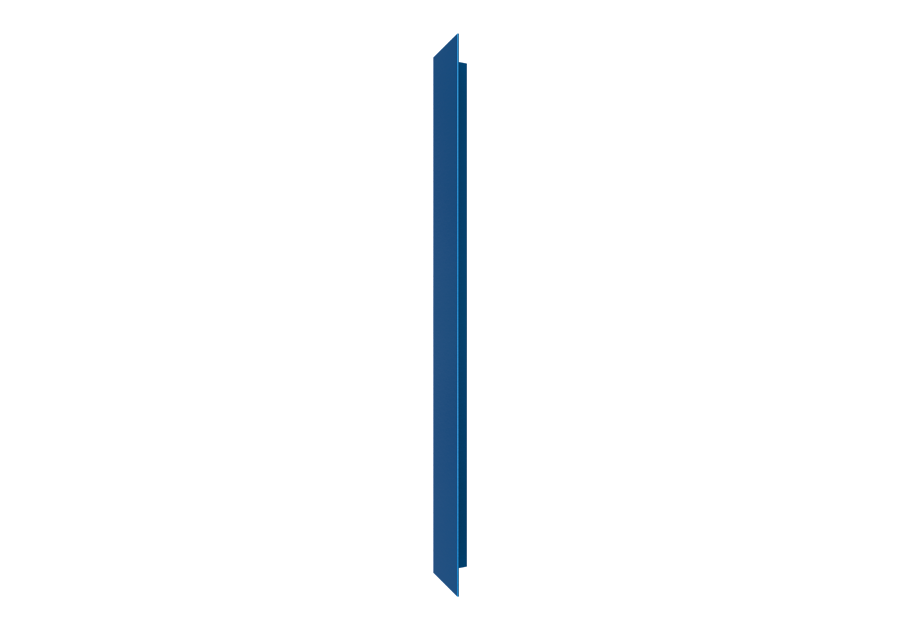

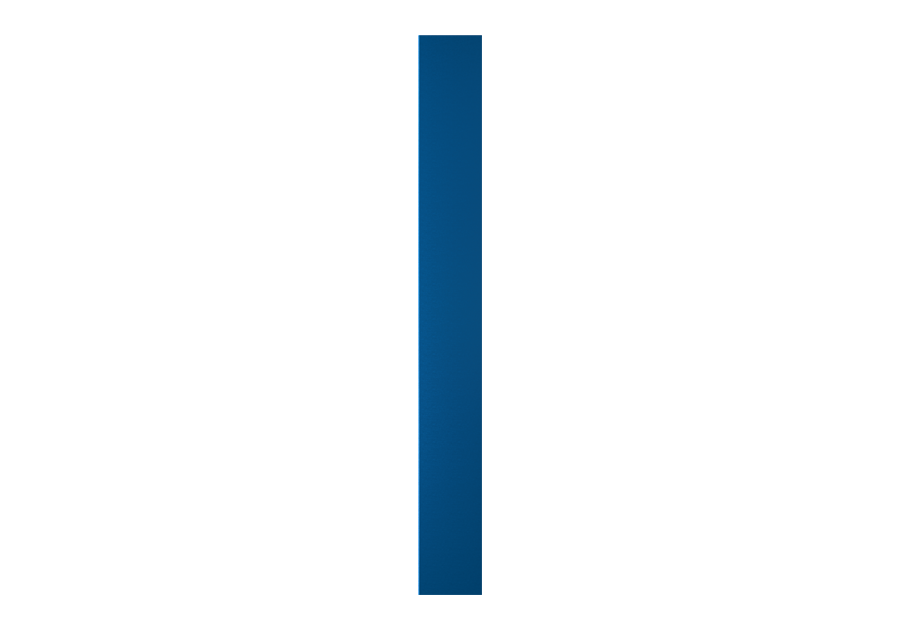

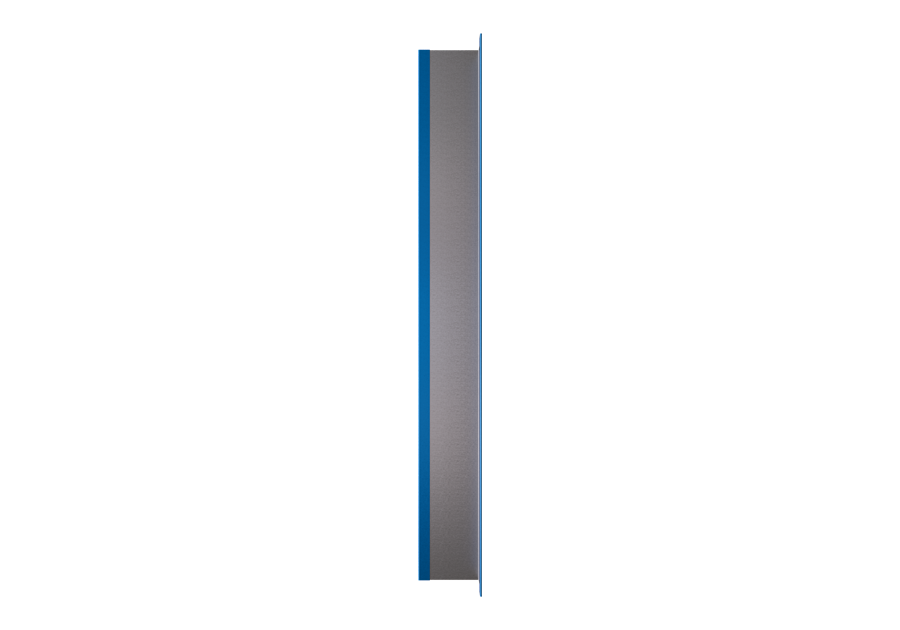

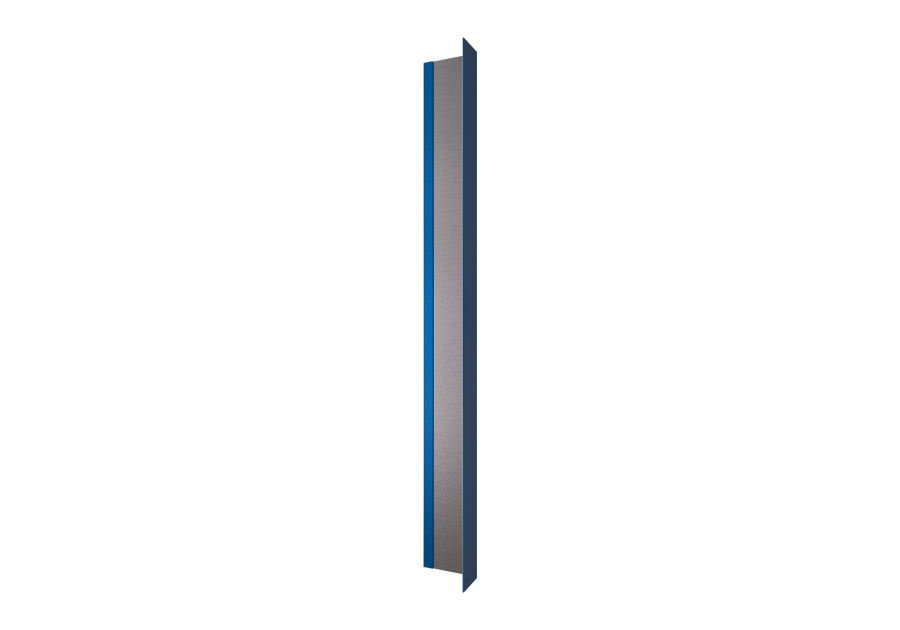

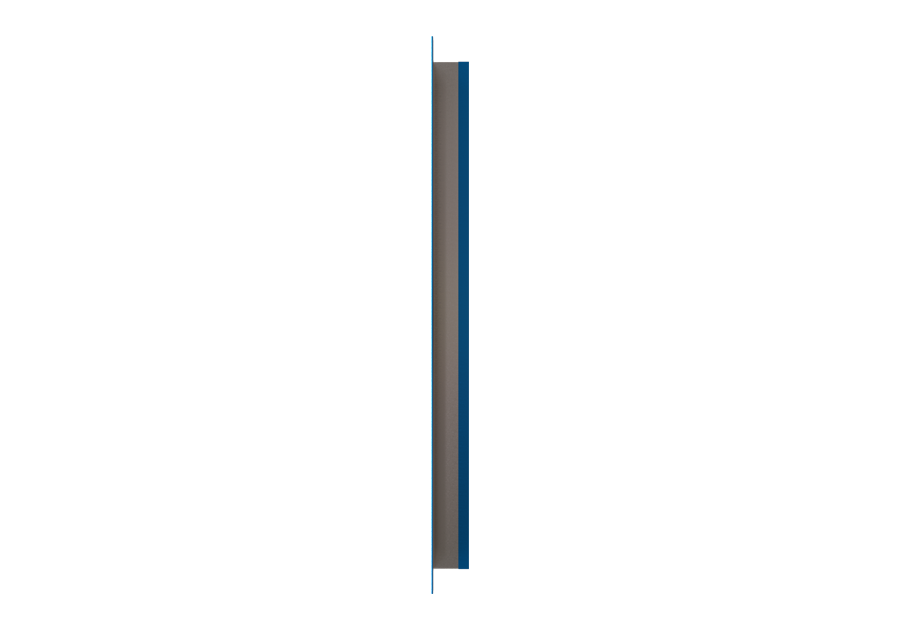

Shiel L External are fully supported flashing elements designed to cover the external junction of vertical surfaces, providing weather tightness and an aesthetically integrated finish in wall cladding systems constructed with ThermaBarr, ThermaGard, and ThermaMagma WAL insulated sandwich panels.
Shiel L External
Key benefits
- quick and easy installation
- resistance to weather conditions and corrosion
Manufactured with
- custom side dimensions
- lengths up to 6 m
Description
Facings
- Galvanised steel (EN 10346 and EN 10143)
Steel grade: DX51D
Coating: hot-dip galvanising Z100 g/m² or AluZinc AZ70 g/m²
Nominal thickness: from 0.60 mm to 1.00 mm
- Pre-painted galvanised steel (EN 10346, EN 10143 and EN 10169)
Steel grade: DX51D, S250GD or S280GD
Coating: hot-dip galvanising Z100 g/m² or AluZinc AZ70 g/m²
Nominal thickness: from 0.35 mm to 1.00 mm
Colour coating: SP, PVC or PVDF
- Stainless steel (EN 10088-1)
Steel grade: AISI 304 2B or AISI 316L
Nominal thickness: from 0.35 mm to 0.80 mm
Without colour coating: matt or gloss finish
Suitable for applications requiring corrosion resistance and compliance with hygiene specifications.
- Aluminium (EN 485-1-2-4, EN 573-3, EN 546-1-2-3-4, EN 1396, EN 602 and ASTM-B209)
Aluminium alloys: 1xxx or 3xxx
Temper: H14, H24 or H44
Nominal thickness: from 0.60 mm to 1.00 mm
Without colour coating: matt or gloss finish
- Pre-painted aluminium (EN 485-1-2-4, EN 573-3, EN 546-1-2-3-4, EN 1396, EN 602 and ASTM-B209)
Aluminium alloys: 1xxx or 3xxx
Temper: H14, H24 or H44
Nominal thickness: from 0.65 mm to 1.00 mm
Colour coating: SP or PVDF
Suitable for applications requiring corrosion resistance.
Configuration
Suitable for use with insulated panels of any profile.
Available Options
Available coatings and colours
DETAILS
CLOSE
Simple Polyester
Nominal coating thickness: 25 μm ± 5 μm
It is the most widely used and cost-effective coating option for metal facings. It is suitable for both exterior and interior surfaces and is typically used in building applications in inland areas under normal environmental conditions, i.e. non-corrosive atmospheres with low levels of air pollution. It provides adequate protection for outdoor exposure conditions (RC3) and long-term aesthetic performance.
Durable PVC Plastisol
Nominal coating thickness: 200 μm
It stands out for its exceptional durability and is ideal for demanding environments. It offers high wear resistance and long-term colour retention, even after prolonged exposure to UV radiation and adverse weather conditions. It provides adequate protection for outdoor exposure conditions (RC5) and long-term aesthetic performance.
High-Performance PVDF
Nominal coating thickness: 50 μm
It is ideal for high-specification architectural projects where aesthetics are of primary importance. It offers high wear resistance and long-term colour retention, even after prolonged exposure to UV radiation and adverse weather conditions. It provides adequate protection for outdoor exposure conditions (RC4) and long-term aesthetic performance.
Coating colour options
A wide range of colours is available:
RAL 1013
RAL 1014
RAL 1015
RAL 1023
RAL 2008
RAL 2013
DB 302
RAL 3005
RAL 3009
RAL 3011
RAL 3020
RAL 5005
RAL 5010
RAL 5014
RAL 5015
RAL 5024
RAL 6005
RAL 6011
RAL 6017
RAL 6021
RAL 7004
RAL 7015
RAL 7016
RAL 7023
RAL 7030
RAL 7035
RAL 7036
RAL 7037
RAL 7040
RAL 7042
RAL 7044
RAL 7045
RAL 8004
RAL 8014
RAL 8017
RAL 8019
RAL 9002
RAL 9005
RAL 9006
RAL 9007
RAL 9010
For more colours, contact us.
Connection / fixing options
DETAILS
CLOSE
They are fixed to the primary structure using the standard method of exposed fixing (visible fasteners).
