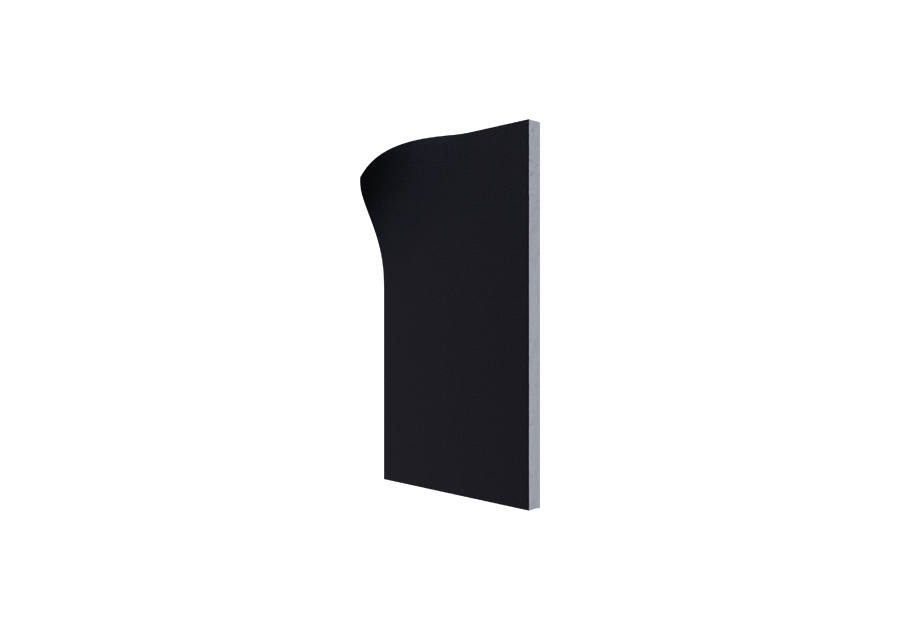

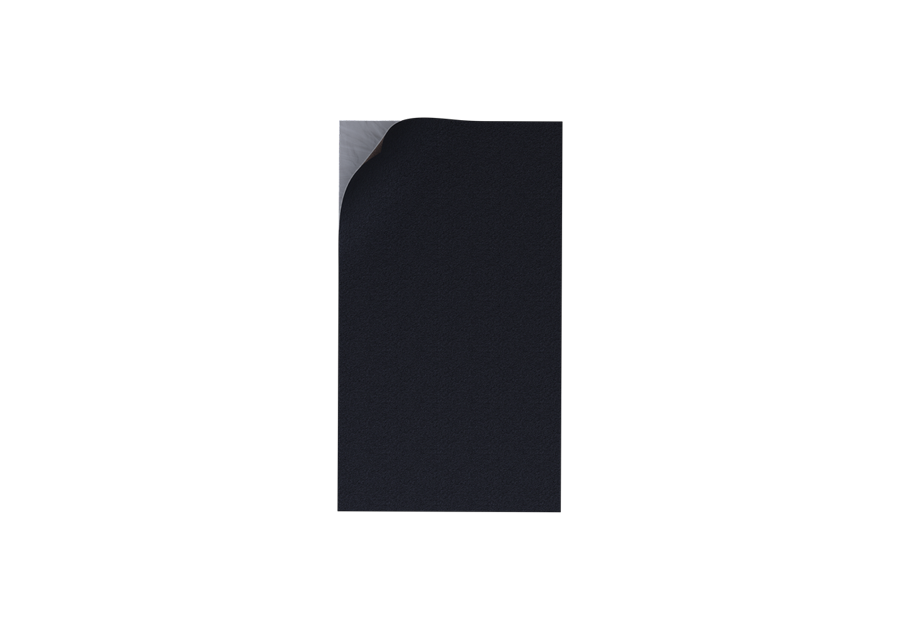

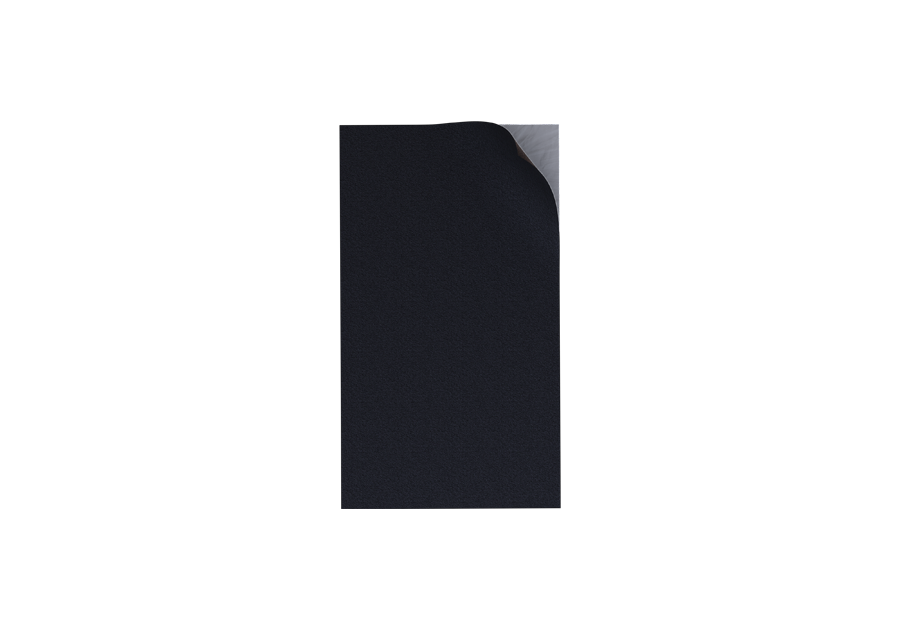

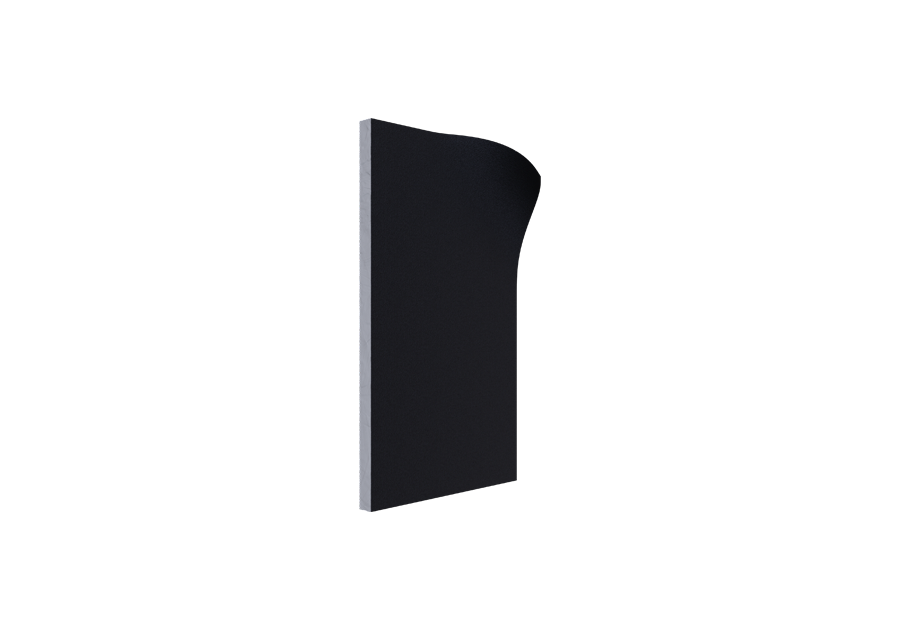

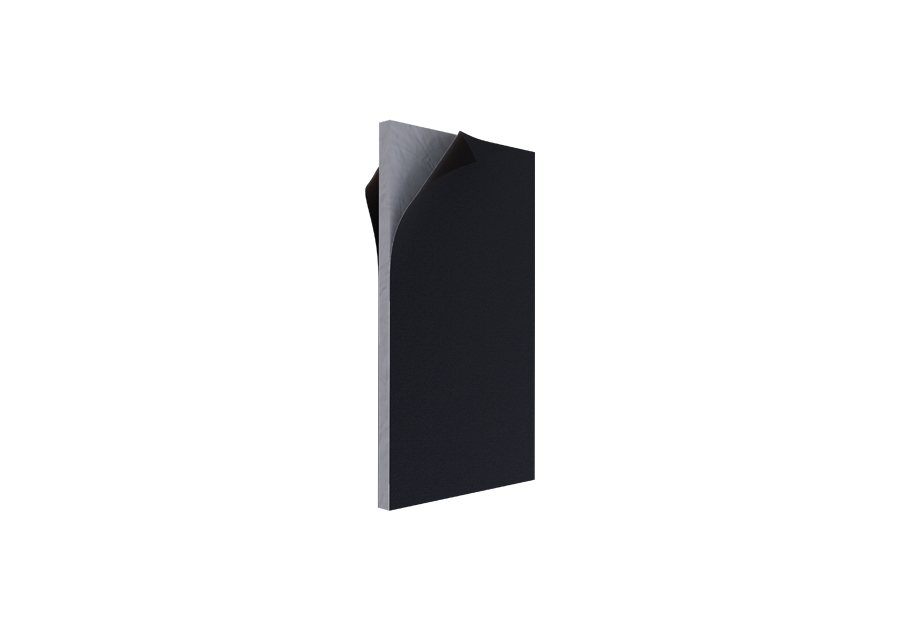

ThermaBarr Slab are self-supporting insulated boards with Stoneglass or Cart 90 facings on both sides and a polyurethane (PUR) foam core, suitable for use as insulation material in horizontal and vertical structural elements, both external and internal, in all types of buildings.
ThermaBarr Slab
Key benefits
- excellent thermal insulation performance, U-value
- very good compressive strength
- CFC and HCFC free
Available in
- effective width 1150mm
- nominal thickness from 30mm to 100mm
- bespoke lengths from 2m to 8m, depending on project requirements
Key properties
Technical specifications
Nominal thickness (mm)
Weight – W 1,150 mm (kg/running m)
Thermal transmittance U & RD (m²·K/W)
Nominal thickness (mm)
30
Weight – W 1,150 mm (kg/running m)
1,40
Thermal transmittance U & RD (m²·K/W)
(0,76) 1,30Nominal thickness (mm)
50
Weight – W 1,150 mm (kg/running m)
2,30
Thermal transmittance U & RD (m²·K/W)
(0,46) 2,15Nominal thickness (mm)
80
Weight – W 1,150 mm (kg/running m)
3,70
Thermal transmittance U & RD (m²·K/W)
(0,29) 3,45Nominal thickness (mm)
100
Weight – W 1,150 mm (kg/running m)
4,60
Thermal transmittance U & RD (m²·K/W)
(0,23) 4,35*Foam weight and thermal performance were calculated taking into account:
Core density 40 kg/m³
Thermal conductivity 0.023 W/m·K
Nominal board thickness
(Standards EN 13165, EN 12667 and EN 12939)
- Stoneglass facing (EN 11925)
Colour: White
Class: E (fire performance)
Waterproof with additives that protect against mould and algae
Suitable for most types of render systems
Rough surface that improves adhesion
- Cart 90 facing
Colour: Black
Bituminous for additional waterproofing
Waterproof with additives that protect against mould and algae
Ribbed surface for anti-slip protection and improved adhesion
Lightweight and resistant to mechanical stress and low temperatures
- Fibre-glass-reinforced polyester resin sheet
Nominal thickness: from 0.40 mm to 0.50 mm
Roll width: 1,010 mm
Surface resistant to chemical and bacterial agents
Surface resistant to UV radiation
Resistant to contact with urea and ammonia
Reaction to fire: F-s2-d0
Colour: Opal White
Polyurethane Foam Core (PUR) (EN 13165)
Category: F
Density: 35 to 42 kg/m³
Its mechanical strength makes it ideal for structural materials, as it can withstand building loads. It is lightweight, which facilitates panel installation.
Thermal conductivity (λ): 0.021 to 0.023 W/mK
The low thermal conductivity offers superior insulation, minimizing heat loss and enhancing the overall energy efficiency of structures.
Closed-cell structure: 90%
The high proportion of closed cells ensures low moisture absorption and enhanced resistance to corrosion and wear, making it ideal for humid environments or areas exposed to severe weather conditions.
Sound insulation: Due to its density, it also offers good acoustic insulation performance.
Durability: Service life of 30 years
Environmental friendliness: CFC and HCFC free
It does not contain substances hazardous to health and is manufactured using materials that comply with environmental standards.
Available Options
Connection / fixing options
DETAILS
CLOSE
These boards are not load-bearing or self-supporting structural elements, but fully supported insulation elements. They do not carry loads and cannot resist loads (bending, shear). Although their compressive strength under a uniformly distributed load reaches 150 kN/m², their bending strength does not exceed 15 kN/m².
They are fixed to the load-bearing elements either with adhesive (glue) or with anchors (plastic or metal).
In all cases, at the joint between boards, the use of a sealing material is recommended (typically low-expansion polyurethane foam) to seal the construction.
Applications
DETAILS
CLOSE
They are used for energy upgrades to buildings, contributing substantially to energy savings.
They reduce heat losses and help cut CO₂ emissions, improving the environmental performance of the building envelope.
One of their key applications is floor insulation for cold rooms, where stable thermal performance and high compressive strength are required.
