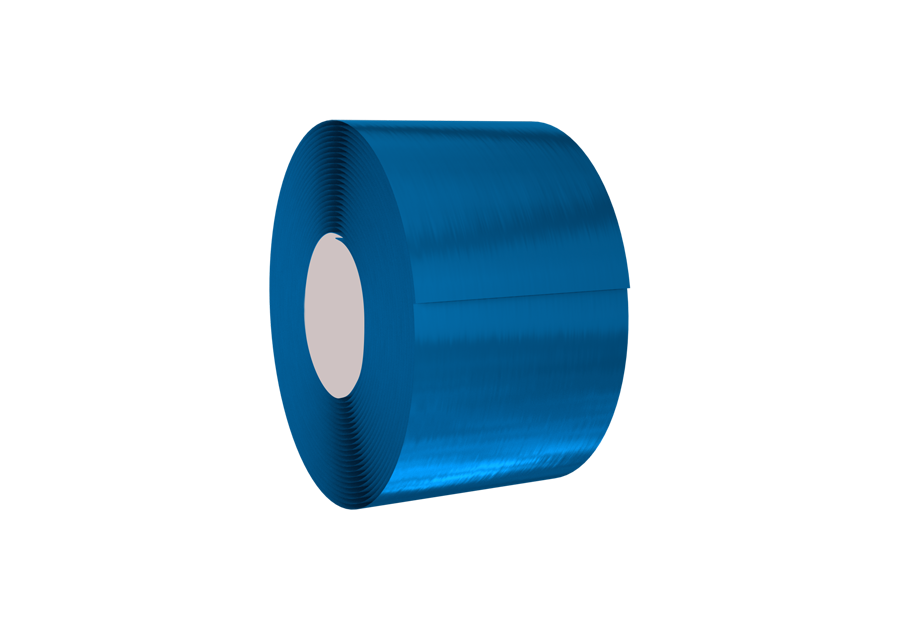

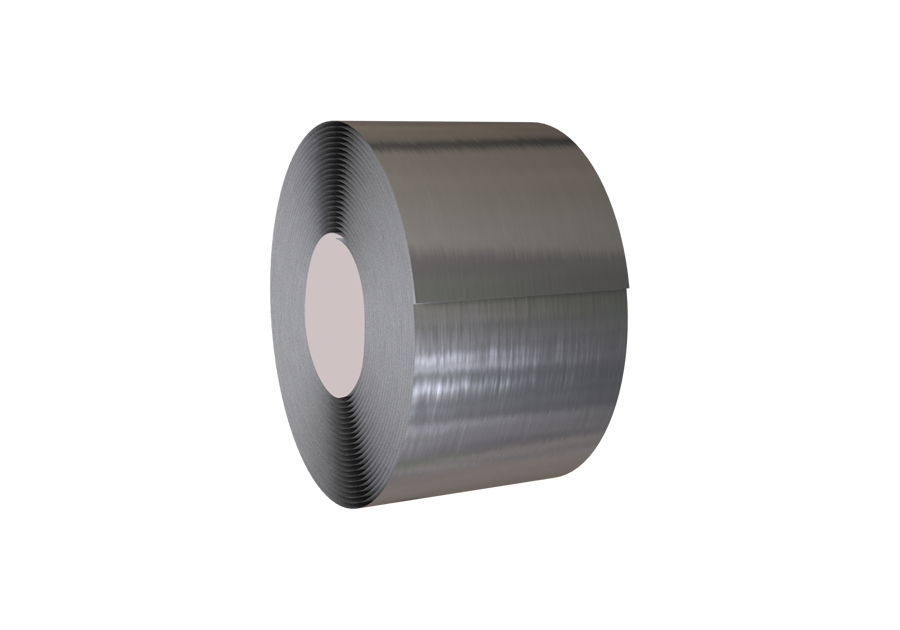

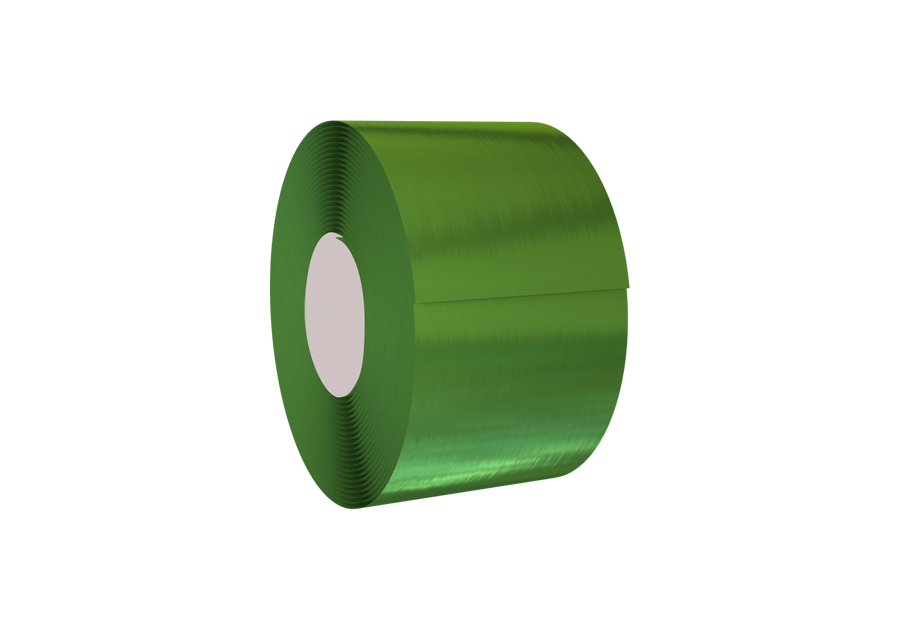

Mini coils
Key benefits
- dimensional accuracy in width and length
- high cut quality through slitting
- easy handling and transport
- versatile use for cold roll-forming profiles
Produced with
- choice of dimensions
Description
Sheets
- Hot-dip galvanised steel (EN 10346, EN 10143)
Steel grade: DX51D
Coating: hot-dip galvanising Z100 g/m² or AluZinc AZ70 g/m²
Nominal thickness: from 0.60 mm to 1.0 mm
- Pre-painted hot-dip galvanised steel (EN 10346, EN 10143 and EN 10169)
Steel grade: DX51D, S250GD or S280GD
Coating: hot-dip galvanising Z100 g/m² or AluZinc AZ70 g/m²
Nominal thickness: from 0.35 mm to 1.0 mm
Colour coating: SP, PVC or PVDF
- Stainless steel (EN 10088-1)
Steel grade: AISI 304 2B or AISI 316L
Nominal thickness: from 0.35 mm to 0.80 mm
Without colour coating: matt or gloss finish
Suitable for applications requiring corrosion resistance and hygienic-grade specifications.
- Aluminium (EN 485-1-2-4, EN 573-3, EN 546-1-2-3-4, EN 1396, EN 602 and ASTM-B209)
Aluminium alloys: 1xxx or 3xxx
Temper: H14, H24 or H44
Nominal thickness: from 0.60 mm to 1.00 mm
Without colour coating: matt or gloss finish
- Pre-painted aluminium (EN 485-1-2-4, EN 573-3, EN 546-1-2-3-4, EN 1396, EN 602 and ASTM-B209)
Aluminium alloys: 1xxx or 3xxx
Temper: H14, H24 or H44
Nominal thickness: from 0.65 mm to 1.00 mm
Colour coating: SP or PVDF
Suitable for applications requiring corrosion resistance.
Available Options
Available coatings and colours
Simple Polyester
Nominal coating thickness: 25 μm ± 5 μm
Surface texture: smooth
The most widely used and cost-effective coating option for sheet metal. Suitable for both external and internal surfaces, typically used for building projects in mainland environments under normal conditions (i.e. non-corrosive atmospheres with low air pollution). Provides adequate protection for external environmental conditions and long-term aesthetic performance.
Durable PVC Plastisol
Nominal coating thickness: 200 μm
Surface texture: orange peel
Known for outstanding durability and ideal for demanding environments.
High req PVDF
Nominal coating thickness: 50 μm
Ideal for high-requirement architectural projects where aesthetics are a priority. Offers high resistance to wear and long-term colour retention, even after prolonged exposure to UV radiation and adverse weather conditions. Classified as s1 for reaction to fire (low smoke production), making it suitable for buildings where high fire-safety standards are required.
Coating colour options
A wide range of colours is available:
For more colours, contact us.
