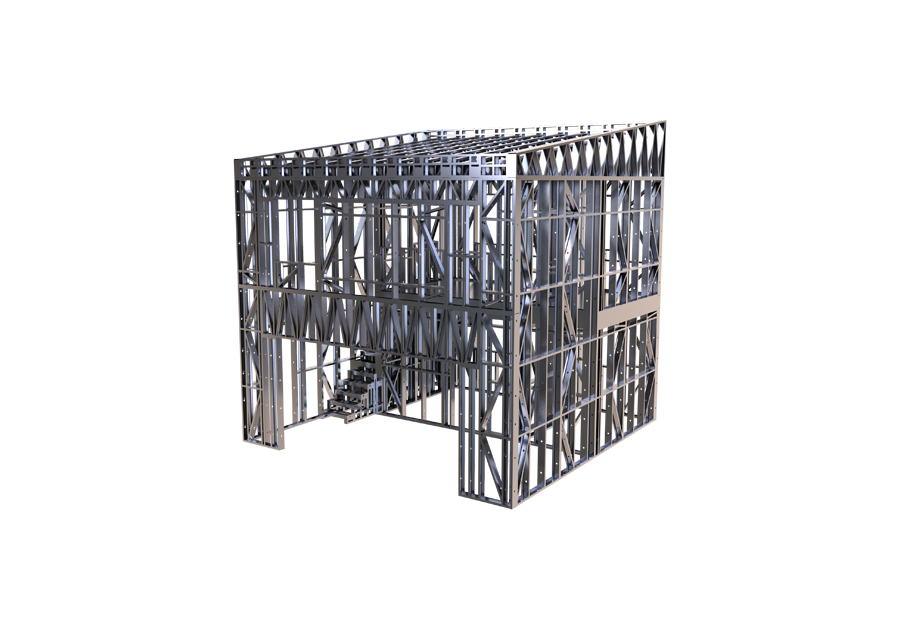

MetaOikos are steel building frames formed from cold-formed thin-gauge sections, offering an ideal solution for modern construction.
MetaOikos
Key benefits
- excellent load-bearing capacity as a structural element
- quick and straightforward standardised installation
- seismic performance
- flexibility in configuring the primary structural frame
Available in
- section width from 75 mm to 400 mm
- nominal thickness from 1 mm to 4 mm
- bespoke lengths up to 14 m, depending on project requirements
- optional holes Ø7, Ø8, Ø10, Ø12.5, Ø14, Ø16, Ø18, Ø20, Ø22, Ø25 and Ø12.5×20, Ø14×20, Ø16×25, Ø18×30 in any position
Description
Sheets
- Galvanised steel (EN 10346 and EN 10143)
Steel grade: S320GD and S350GD
Coating: hot-dip galvanising, up to Z275 g/m² or up to AZ265 g/m² or up to ZM200 g/m²
Nominal thickness: from 1 mm to 4 mm
Without colour coating
Available Options
Connection / fixing options
DETAILS
CLOSE
They are fixed to the main structure using the standard bolted connection method.
Fixing with U- or L-section connectors is recommended.
Connector thickness must always be greater than the thickness of the connected section.
Connections are recommended at support locations.
Welded connections are not recommended.
Transverse overlap is not recommended.
For structural applications, the reduction in strength due to notches must be calculated in accordance with EN 1993-1-3.
